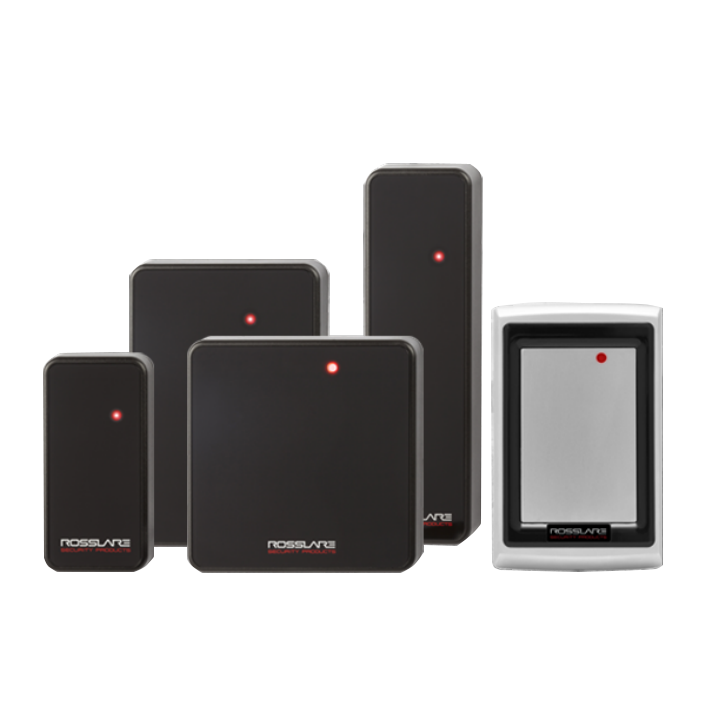

ROSSLARE AY-x6255
CSN SELECT™ Smart Card Readers
Main Features
• The reader settings can be configured with the CS-CCT Configuration Tool
• Supports OSDP V2 including secure channel using AES 128 bit encryption for improved security with an extended range, up to 32 addresses
• MIFARE Classic EV1 Sector Read – Compatible with ISO 14443A 1K and 4K credentials
• Supports NFC1 technology using Rosslare BLE-ID mobile app or SDK.
• Sleek and modern design
• Tri-colored LED operation
• Optical wall tamper detection
• Multiple mounting options including micro-mullion, mullion, US gangbox and UK/Asia gangbox
• Comes with mounting template and installation kit for easy installation
• Water and dust resistant
• IP68 for models without DIP switches
• IP65 for models with DIP switches
• IK08 vandal resistance (without the bezel)
Technical Specifications
| Electrical Characteristics | |
| Operating Voltage Range | 8 to 16 VDC |
| Current at 12 V | AY-K/L6255: Standby: 55 mA, max: 80 mA |
| AY-H/M6255: Standby: 75 mA, max: 110 mA | |
| AY-Q6255: Standby: 100 mA, max: 150 mA | |
| Read Range | AY-K6255/AY-Q6255: 5 cm (2.0 in.) |
| AY-L6255: 7 cm (2.9 in.) | |
| AY-H/M6255: 9 cm (3.5 in.) | |
| NFC up to 7 cm (2.9 in.) | |
| LED/Buzzer Controls | Dry Contact, N.O. |
| Tamper Output | Open collector, active low, max. sink current 16 mA |
| Credential Technology¹ | 13.56MHz: ISO14443A: MIFARE Classic® EV1 / MIFRAE Classic EV1 Sector read /MIFARE Classic®, MIFARE Ultralight® Nano / MIFARE Ultralight® EV1/ MIFARE Ultralight® C, MIFARE Plus® S / MIFARE Plus® SE / MIFARE Plus® X / MIFARE Plus® EV1, MIFARE DESFire® EV1/ MIFARE DESFire® EV2, MIFARENFC N-TAG / Card Emulation ISO14443B – China National IDISO15693 HID®, iClass®, PicoPass, iCode, LEGIC ISO18092: SONY® FeliCa® (Hong Kong Octopus) |
| Communication and Controller Connection | Wiegand: 26 (default), 32, 34, 40, 56, 64, 96, 128-bits Wiegand Card + PIN Clock & Data OSDP Secure Channel V2 |
| Maximum Cable Distance to Controller | Wiegand: 150 m (500 ft) with 18-AWG cable OSDP (RS-485): 1,200 m (4,000 ft) with 2×2 18-AWG twisted shielded cable |
| Environmental Characteristics | |
| Operating Temp. Range | -35°C to 66°C (-31°F to 150°F) |
| Operating Humidity Range | 0 to 95% (non-condensing) |
| Operating Environment | UV-resistant, epoxy-potted, suitable for indoor and outdoor use • IP68 for models without DIP switches • IP65 for models with DIP switches |
| Vandal Resistance | IK08 (without the bezel) |
| Physical Characteristics | |
| Dimensions (H x W x D) | AY-K6255: 80.5 x 40.5 x 14.7 mm (3.2 x 1.6 x 0.6 in.) |
| AY-L6255: 145.0 x 43.0 x 22.3 mm (5.7 x 1.7 x 0.9 in.) | |
| AY-H6255: 110.7 x 75.0 x 17.0 mm (4.4 x 3.0 x 0.7 in.) | |
| AY-M6255: 89.5 x 88.5 x 16.9 mm (3.5 x 3.5 x 0.7 in.) | |
| AY-Q6255: 120.0 × 76.0 × 21.5 mm (4.7 x 3.0 x 0.9 in.) | |
| Weight | AY-K6255: 73 g (2.6 oz) |
| AY-L6255: 130 g (4.6 oz) | |
| AY-H6255: 177 g (6.2 oz) | |
| AY-M6255: 167 g (5.9 oz) | |
| AY-Q6255: 410g (14.5 oz) | |
