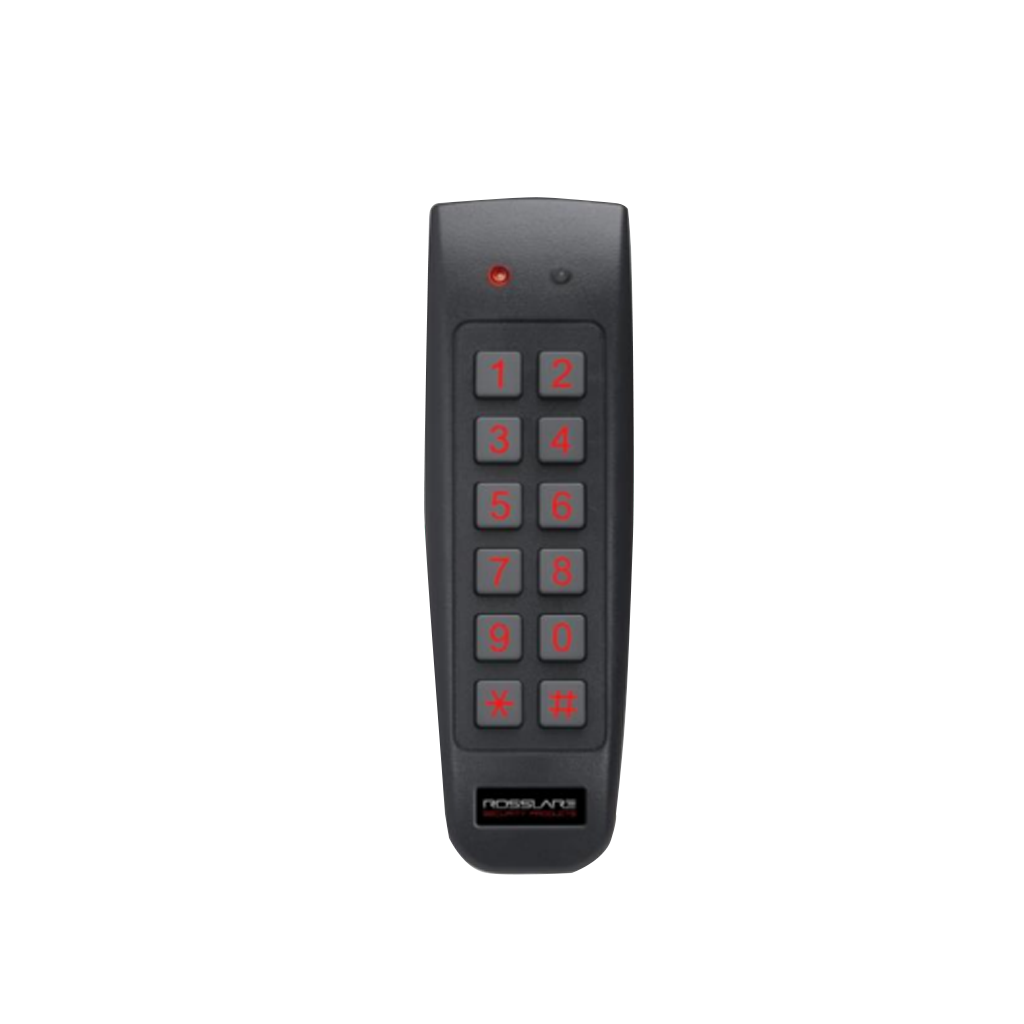

ROSSLARE AYC-G64
2×6 Backlit Proximity & PIN Convertible Reader / Controller
MAIN FEATURES
Supports 4- to 8-digit PIN credentials and 125 kHz EM type RFID cards and tags
Smooth, attractive design, with all-weather indoor and outdoor operation
Large, highly-visible RED backlit keypad
2 tri-colored LEDs and an integral sounder for programming and operation
User friendly menu, based on keypad, LED and sounder indicators
Back and cover optical tamper detection and output
Default operation as a multi-format reader (Wiegand 26-Bit/Clock & Data)
Automatically recognizes Rosslare’s PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays
PROFESSIONAL GRADE FEATURES
8 selectable PIN transmission modes including options for Key Stream, Binary, Parity, and 2×6 Matrix
Supports Wiegand 26-Bit or Clock & Data transmission formats
3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN)
60 cm (23.6 in.) shielded interface cable
Meets IP65
SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage Range | Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies |
| input Current | Standby: 105 mA at 12 VDC; Maximum: 140 mA at 16 VDC |
| Proximity Card Reader | Maximum read range*: 80 mm (3.2 in.) Modulation: ASK at 125 kHz Compatible cards: All 26-Bit EM cards |
| Tamper | Open collector, active low, 32 mA max sink current |
| OPERATIONAL SPECIFICATIONS | |
| Keypad | 2×6 keys for local programming and 4- to 8-digit PIN codes entry |
| Design | Epoxy potted, fully sealed in a rugged polycarbonate enclosure. Red illuminated rubber keys. Suitable for harsh environments. |
| Audio/Visual | Two tri-colored LEDs, built-in buzzerTwo tri-colored LEDs, built-in buzzer |
| READER MODE | |
| LED Control | Dry contact, N.O. |
| Facility Code | Programmable |
| Read Card Format | Selectable Wiegand 26-Bit or Clock & Data |
| PIN Code Formats | 8 selectable formats, from 1- to 8-digit length PIN codes |
| CONTROLLER MODE (only available with PS-x25T series intelligent power supplies) | |
| Capacity | 500 users, dual code/card or code + card each |
| User Levels | Normal, Secure, Master |
| Security Modes | Normal, Bypass, Secure |
| Outputs | Lock Strike output; Auxiliary output (PS-x25T series) |
| Inputs | REX (Request-to-Exit) Auxiliary/door monitor with 10 programmable modes |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Environment | Weather-resistant, meets IP65, epoxy-potted, suitable for outdoor use |
| Operating Temperature | -35°C to 66°C (-31°F to 151°F) |
| Operating Humidity | 0 to 95% (non-condensing) |
| PHYSICAL SPECIFICATIONS | |
| Dimensions | 137 x 44 x 21 mm (5.4 x 1.7 x 0.8 in.) |
| Weight | 160 g (5.6 oz) |
| SYSTEM COMPONENTS | AYC-G64 is compatible with standard access controllers in Reader mode. With Rosslare’s PS-x25T intelligent power supply series it automatically converts into a 500-user secure controller. |
