描述
ROSSLARE DR-6280 是ROSSLARE門禁讀頭，用於層門或通道。香港防盜為安裝商及經銷商。卡種及讀距以原廠規格書為準。

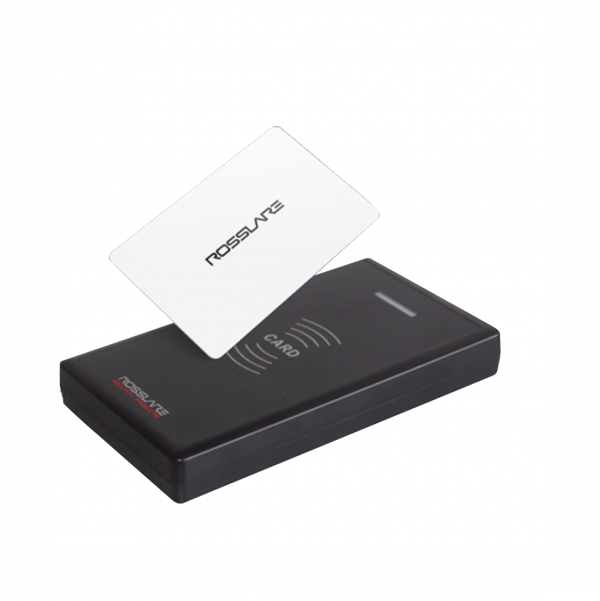

ROSSLARE DR-6280
DESFire EV1 / MIFARE Classic EV1 Desktop Reader
Main Features
• Contactless Smart Card Reader (13.56 MHz)
• Meets ISO14443 Type A Standard
• Reads O2S ID data from an O2S credential
• Uses NXP SAM AV2 for identity and communication
cryptography
• AES 128-bit encryption during the transmission of
an ID from a MIFARE DESFire EV1 credential
• Reads CSN of non-O2S MIFARE credentials
• Bi-Colored LED
• Supports USB 2.0 Standard (compatible with USB
1.1), meets the EIA Standard
Specifications
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage | 5 VDC (USB powered) |
| Operation Current | Standby: 87 mA, Max: 135 mA |
| OPERATIONAL SPECIFICATIONS | |
| Supported Transponders | MIFARE Classic EV1 MIFARE DESFire EV1 |
| Read Card Distance | Up to 50 mm (2.0 in.) |
| RF Modulation | ASK |
| Operation Frequency | 13.56 MHz |
| Output Format | O2S – Preprogrammed key Custom – Wiegand 26, 32, 34, 40, 56, 64, 128-bit and customized* |
| OS Support | Windows 7 32-bit and 64-bit Windows 10 32-bit and 64-bit |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Environment | Indoor use |
| Operating Temperature Range | 0°C to 63°C (32°F to 145°F) |
| Storage Temperature Range | -20°C to 63°C (-4°F to 145°F) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| MECHANICAL SPECIFICATIONS | |
| Enclosure Dimensions (H x W x D) | 123 x 70 x 16 mm (4.9 x 2.8 x 0.6 in.) |
| Weight | 130 g (4.6 oz.) |
