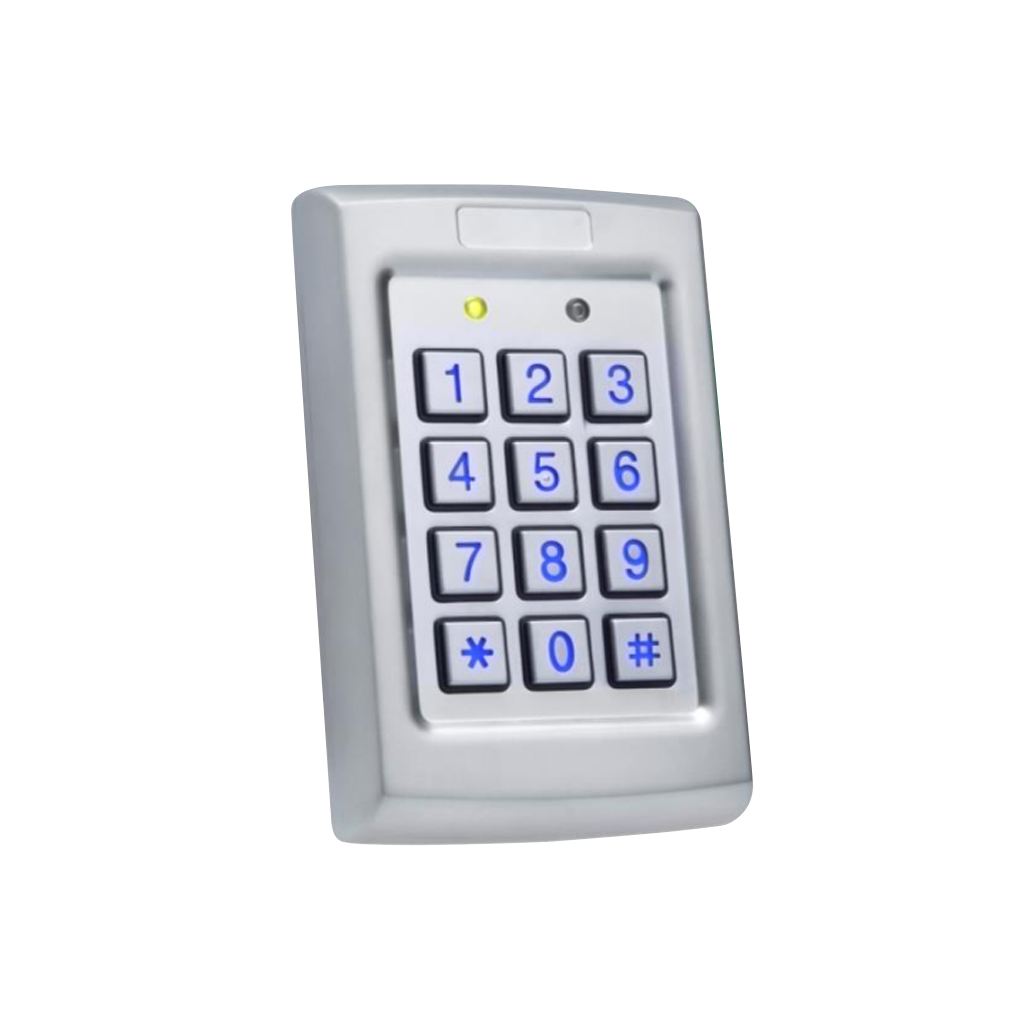

ROSSLARE AYC-Q54B
Convertible Anti-Vandal
Backlit 3×4 PIN Reader/Controller
MAIN FEATURES
Supports 4- to 8-digit PIN credentials
Smooth, attractive design, with all-weather indoor and outdoor operation
Large, highly-visible blue backlit keypad
2 tri-colored LEDs and an integral sounder for programming and operation
User friendly menu, based on keypad, LED and sounder indicators
Back and cover optical tamper detection and output
Automatically recognizes Rosslare’s PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays
PROFESSIONAL GRADE FEATURES
8 selectable PIN transmission modes including options for Key Stream, Binary, Parity, and 3×4 Matrix
Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorized opening
60 cm (23.6 in.) shielded interface cable
Meets IP65 for outdoor use
SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage Range | Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies |
| Input Current | Standby: 65 mA at 12 VDC Maximum: 110 mA at 16 VDC |
| Tamper | Optical back tamper sensor, O.C. active low, 32 mA max. sink current |
| OPERATIONAL SPECIFICATIONS | |
| Keypad | 3×4 keys for local programming and 4- to 8-digit PIN codes entry |
| Design | Epoxy potted, fully-sealed in a rugged metal enclosure, blue backlit metal keys, highly strong construction. Suitable for extremely harsh environments. |
| Audio/Visual | Two tri-color LED indicators, built-in buzzer |
| READER MODE | |
| LED Control | Dry contact, N.O. |
| Facility Code | Programmable |
| PIN Code Formats | 8 selectable formats, from 1- to 8-digit length PIN codes |
| CONTROLLER MODE (available with PS-x25T series intelligent power supplies only) | |
| Capacity | 500 users, single/dual PIN code each |
| User Levels | Normal, Secure, Master |
| Security Modes | Normal, Bypass, Secure |
| Outputs | Lock Strike output Auxiliary output (PS-x25T series) |
| Inputs | REX (Request to Exit) Auxiliary/door monitor with 10 programmable modes |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Environment | All weather, indoor and outdoor use, meets IP65 |
| Operating Temperature | -35°C to 66°C (-31°F to 151°F) |
| Operating Humidity | 0 to 95% (non-condensing) |
| PHYSICAL SPECIFICATIONS | |
| Dimensions | 120 x 76 x 21 mm (4.72 x 3 x 0.83 in.) |
| Weight | 480 g (1.05 lbs) |
| SYSTEM COMPONENTS | AYC-Q54B is compatible with standard access controllers in Reader mode. With Rosslare’s PS-x25T intelligent power supply series it automatically converts into a 500-user secure controller. |
