TOTEN-BE

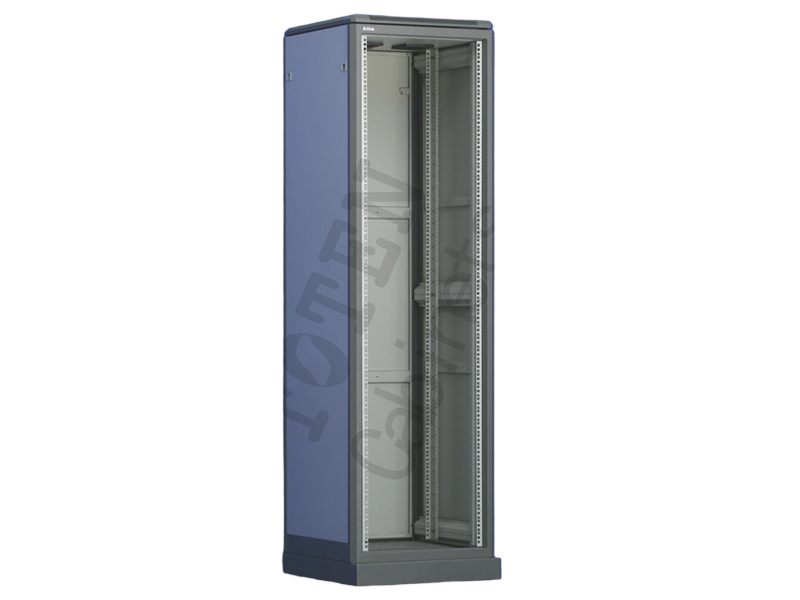

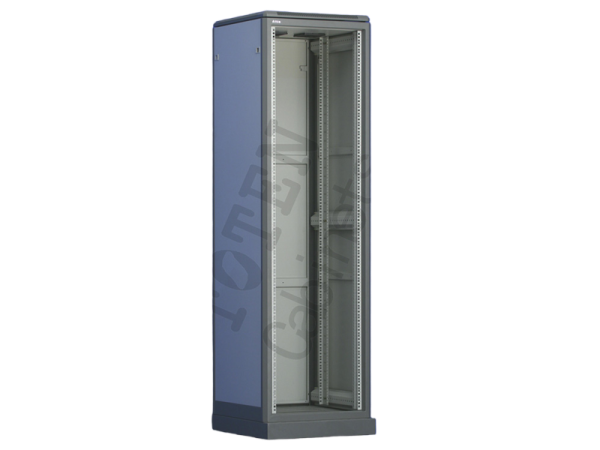

Radio and Television Cabinet

TOTEN-BE 屬TOTEN 圖騰伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為TOTEN 圖騰產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。

產品說明

The exterior design is noble and elegant, with exquisite craftsmanship and precise dimensions, exuding a strong sense of the times and adding value to your project; No front door, easy to use, suitable for small computer rooms.

規格

BE Radio and Television Cabinet

Standard

Compliant with ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1、DIN41494; PART7, GB/T3047.2-92 standards

Features:

The exterior design is noble and elegant, with exquisite craftsmanship and precise dimensions, exuding a strong sense of the times and adding value to your project;

Internal adjustment support legs;

Multiple wiring channels at the upper and lower parts that can be closed, and the size of the large wiring hole at the bottom can be adjusted as needed;

Optional installation base to meet the requirements of fixed cabinet, bottom wiring, bottom cold air supply, and rodent prevention;

High universality of accessories;

The volume of individual packaging is only about one-third of the total container volume.

Load capacity: Static load of 500KG

Protection level: IP20

Main materials: SPCC high-quality cold-rolled steel plate production;

Thickness: Base: 2.0mm, square hole strip 1.5mm, installation beam 1.2mm, others 0.8mm

Surface treatment: degreasing, acid washing, phosphating, electrostatic spraying

Order Code	Capacity (U)	Width (mm)	Depth (mm)	Height (mm)	Packaging size (WDH)	Volume (CBM)
BE.6621.90■	21	600	600	1140	6901120170+680670150	0.1998
BE.6821.90■	21	600	800	1140	790104095+6901120170+680870150	0.2984
BE.6627.90■	27	600	600	1405	6901390170+682670150	0.2311
BE.6827.90■	27	600	800	1405	7901310105+6901390170+680870150	0.3497
BE.6631.90■	31	600	600	1585	6901570170+680670150	0.2520
BE.6831.90■	31	600	800	1585	7901490105+6901570170+680870150	0.3939
BE.6636.90■	36	600	600	1805	6901790170+680670150	0.2780
BE.6836.90■	36	600	800	1805	7901710105+6901790170+680870150	0.4267
BE.6641.90■	41	600	600	2030	6902010170+680670150	0.3041
BE.6841.90■	41	600	800	2030	8001930105+6902010170+680870150	0.4694
