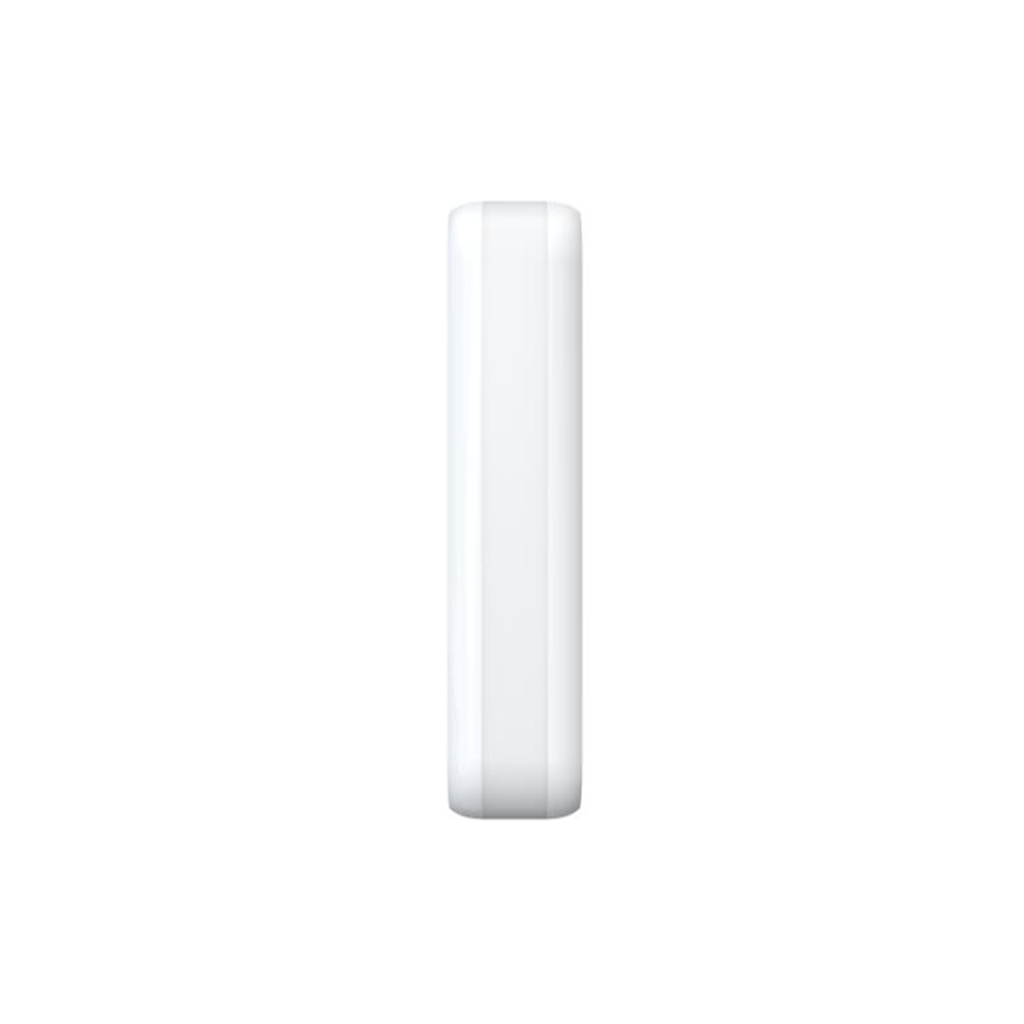

HIKVISION DS-PDC10AM-EG2-WE
Wireless PIR AM Curtain Detector
Features
- Slim design for window frame installation
- IP65 weather resistance for outdoor application
- Active IR anti-masking
- Directional detection support
- Multiple enrollment methods and easy installation
- Frequency hopping against jamming for reliable transmission
Specification
| Detection Performance | |
| Detection Method | Passive Infrared |
| Sensor Model | SFG323-711 |
| Detection Range | Wall mount: 10 m Ceiling mount: 5 m |
| Detection Angle | 5° |
| Detection Zones | 32 |
| Detectable Speed | 0.3 to 2m/s |
| Sensitivity | Auto, pet |
| White Light Filter | 6500lux |
| Pet Immunity | Wall mount: 12 kg Ceiling mount: None |
| Digital Temperature Compensation | Support |
| Creep Zone Protection | Support |
| Anti-masking | Support |
| Feature | |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front, rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Directional Detection | Support |
| Interface | |
| Power Switch | Power up enrolling |
| LED Indicator | Blue (alarm), green+orange (mask) |
| Transmission | |
| Transmission Technology | Tri-X wireless |
| Transmission Method | Two-Way RF wireless |
| Transmission Frequency | 868 MHz |
| Transmission Security | AES-128 encryption |
| Transmission Range(Free Space) | 1.6 km |
| Frequency Hopping | Frequency Hopping |
| Enrolling Method | Power up, remote ID, QR code |
| Electrical Characteristics | |
| Standard Battery Life | Up to 5 years (standby time) (The battery working time can be significantly reduced at low temperatures) |
| Power Supply | Battery powered |
| Battery Type | CR123A × 2 |
| Typical Voltage | 3V |
| General | |
| Operation Temperature | -25°C to 60°C (-13°F to 140°F) |
| Storage Temperature | -25°C to 60°C (-13°F to 140°F) |
| Operation Humidity | 10% to 90% |
| IP Rate | IP65 |
| Dimension(WxHxD) | 29.2 mm × 134.4 mm × 39.5 mm |
| Weight | 118.5 g |
| Mounting Height | 2 m to 3.5 m |
| Mounting Method | Wall, ceiling |
| Application Scenario | Indoor, outdoor |
| Bracket | L-shaped adapter included |
