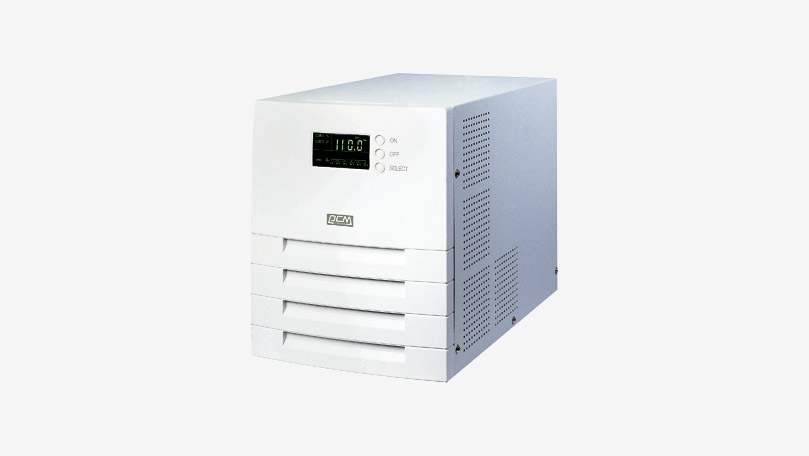

POWERCOM-AR

AVR – AR AVR

POWERCOM-AR 屬POWERCOM不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為POWERCOM產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。

產品說明

POWERCOM AR-11 series are Auto Voltage Regulator (AVR) provide high generate efficiency for home, office and data center. POWERCOM AR-11 series stabilize fluctuate voltage including over-voltage, under-voltage and other unfluctuating voltage problem and output with clean and stable voltage for essential device. POWERCOM AR-11 series with clear LCD indicator to read model status are compatible with linear and non-linear load. POWERCOM AR-11 series build-in surge suppressor (MOV), EMI & LC filters provide pure output for connected model. POWERCOM AR-11 series are Auto Voltage Regulator (AVR) with high performance is the best choice for home, office and data center.

Automatic Voltage Regulator(AVR)
Extended Input Voltage Range
EMI Noise Filtration Applied
Energy Saving Green Topology
Clean and LCD indicator
Output Power Full Protection

型號：AR-5000、AR-7500、AR-10K、AR-15K、AR-20K

規格

AVR
Model	AR-5000	AR-7500	AR-10K	AR-15K	AR-20K
Power Rating	3.5KW	5.25KW	7KW	10.5KW	14KW
INPUT
Frequency	50 or 60Hz
Range	110 Vac ±15% 220 Vac ±15%
OUTPUT
Voltage Regulation	±1%
Frequency	50 / 60 Hz follow input
Efficiency	> 95%
Power Factor	±0.7
Distortion	< 3% of T.H.D. at linear load
AVR
Operation	SPWM (sinwave plus width modulation)
Component	IGBT
Operation Frequency	20 kHz
PROTECTION
Full Protection	Output over/under voltage, Overload, Surge
Maintenance	Manual bypass switch (option)
MANAGEMENT & COMMUNICATION
Indicator	LCD Panel
PHYSICAL
Dimensions(WxDxH)(mm)	258 x 422 x 333				258 x 532 x 546
Weights(Kgs)	15	24	28	32	40
ENVIRONMENT
Operating Humidity	0~95% RH at 0~40°C (Non-condensing)
Audible Noise	Less than 45 dB		Less than 50 dB
