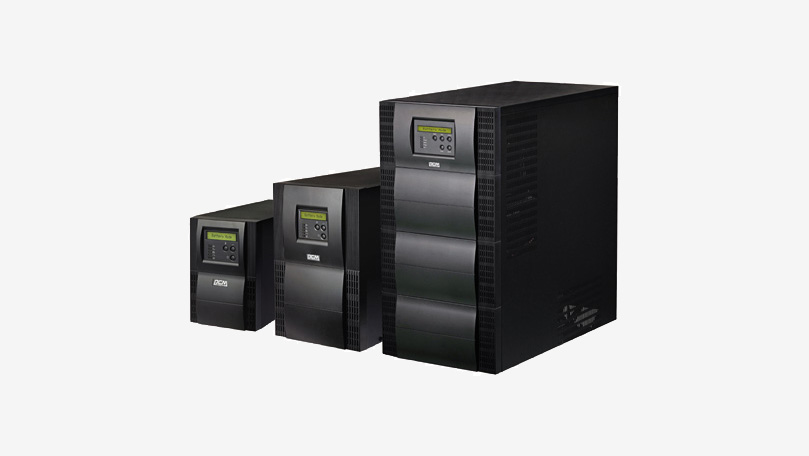

POWERCOM-VGS
VGS – Vanguard II ON – Line UPS
POWERCOM-VGS 屬POWERCOM不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為POWERCOM產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
POWERCOM VGS online series with high performance power output and curve shape outfit is the best choice for business, IT and Telecom system. High performance VGS series power factor 0.9 and attached with PFC (Power Factor Correction) stabilize fluctuate voltage, including over voltage, lower voltage and provide clean and stable voltage for critical device. POWERCOM VGS online series with easy-reading LCD indicator, clearly shows up UPS status and easy to operate. VGS series attach with selectable mode offers different application for user, such as high efficiency mode, free run mode. POWERCOM VGS online series with high performance power factor 0.9 and multi-function design are the best choice for business, IT and telecom system.
- Pure Sinewave with Double Conversion
- Designed for Advanced Electronic Device
- Hot Swappable Battery Replacement
- High Efficiency and Free-Run Mode Available
- Overload, Surge, Short Circuit Protection
- VGS-1000 / 1500 / 2000 / 3000 / 6000 / 10KVA
型號：VGS-1000、VGS-1500、VGS-2000、VGS-3000、VGS-6000、VGS-10000
規格
| UPS | |||||||
|---|---|---|---|---|---|---|---|
| Model | VGS-1000 | VGS-1500 | VGS-2000 | VGS-3000 | VGS-6000 | VGS-10000 | |
| Capacity (VA) | 1000 | 1500 | 2000 | 3000 | 6000 | 10000 | |
| Capacity (Watts) | 900 | 1350 | 1800 | 2700 | 5400 | 9000 | |
| Form | Tower | ||||||
| Phase | Single Phase | ||||||
| Energy Saving | Yes – ECO mode Efficiency > 94% | INPUT | |||||
| Voltage | 100 / 110 / 115 / 120 / 127 or 208 / 220 / 230 / 240 Vac | 208 / 220 / 230 / 240 Vac | |||||
| Voltage Range | 110 Vac | 60 ~ 144 Vac < 25% Load 70 ~ 144 Vac < 50% Load 80 ~ 144 Vac < 75% Load 90 ~ 144 Vac < 100% Load | 120 ~ 276 Vac < 25% Load 140 ~ 276 Vac < 50% Load 160 ~ 276 Vac < 75% Load 180 ~ 276 Vac < 100% Load | ||||
| 220 Vac | 120 ~ 276 Vac < 25% Load 140 ~ 276 Vac < 50% Load 160 ~ 276 Vac < 75% Load 180 ~ 276 Vac < 100% Load | ||||||
| Frequency Range | 50 / 60 Hz (Auto Sensing) | ||||||
| Power Factor | > 0.97 | ||||||
| Cold Start | Yes | OUTPUT | |||||
| Rated Power Factor | 0.9 | ||||||
| Waveform | Pure Sine Wave | ||||||
| Voltage | 100 / 110 / 115 / 120 / 127 or 208 / 220 / 230 / 240 Vac ± 2% | 208 / 220 / 230 / 240 Vac ± 2% | |||||
| Frequency | 50 / 60 Hz ± 0.25 Hz | ||||||
| Transfer Time | 0 ms | ||||||
| Harmonic Distortion | ≤ 2.5% THD at Linear Load | ≤ 3% THD at Linear Load | |||||
| Crest Factor | 3 : 1 | ||||||
| EPO Function | Yes | PROTECTION | |||||
| Overload | Line Mode | 105% – 120% for 30 seconds 121% – 150% for 10 seconds | |||||
| Battery Mode | 101% – 109% for 10 seconds 110% – 120% for 3 seconds | ||||||
| Surge Protection | IEC 61000-4-5 Level 3 | ||||||
| Bypass | Internal Bypass(Automatic and Manual) | ||||||
| Short Circuit Protection | UPS Output Cut Off Immediately | BATTERY | |||||
| Model | VGS-1000 | VGS-1500 | VGS-2000 | VGS-3000 | VGS-6000 | VGS-10K | |
| Type | 12V 7Ah | 12V 7Ah | 12V 7Ah | 12V 7Ah | 12V 7Ah | 12V 9Ah | |
| Quantity | 3 | 4 | 6 | 8 | 20 | 20 | |
| Sealed, Maintenance Free | YES | ||||||
| Typical Recharge Time | 4 Hr to 90% | ||||||
| External Battery Module | Option | ||||||
| External Battery Connector | Option | MANAGEMENT | |||||
| Indicator | LCD Control Panel | ||||||
| Communication Port | RS232, USB(B-type) | ||||||
| SNMP Slot | Option | ||||||
| Audible Alarms | YES | PHYSICAL | |||||
| Power Module | Dimensions (WxDxH) |
152 x 420 x 237 | 152 x 500 x 241 | 225 x 420 x 358 | 257 x 590 x 570 | 257 x 650 x 585 | |
| Weights(Kgs) | 15.2 | 19.4 | 28.8 | 30 | 86 | 96.5 | |
| Shipping Dimensions (WxDxH) |
280 x 545 x 355 | 280 x 625 x 356 | 340 x 526 x 485 | 415 x 760 x 800 | 405 x 860 x 800 | ||
| Weights(Kgs) | 17.4 | 21.3 | 31.6 | 32.9 | 106 | 112 | |
