描述
ROSSLARE AY-S55 是ROSSLARE門禁讀頭，用於層門或通道。香港防盜為安裝商及經銷商。卡種及讀距以原廠規格書為準。

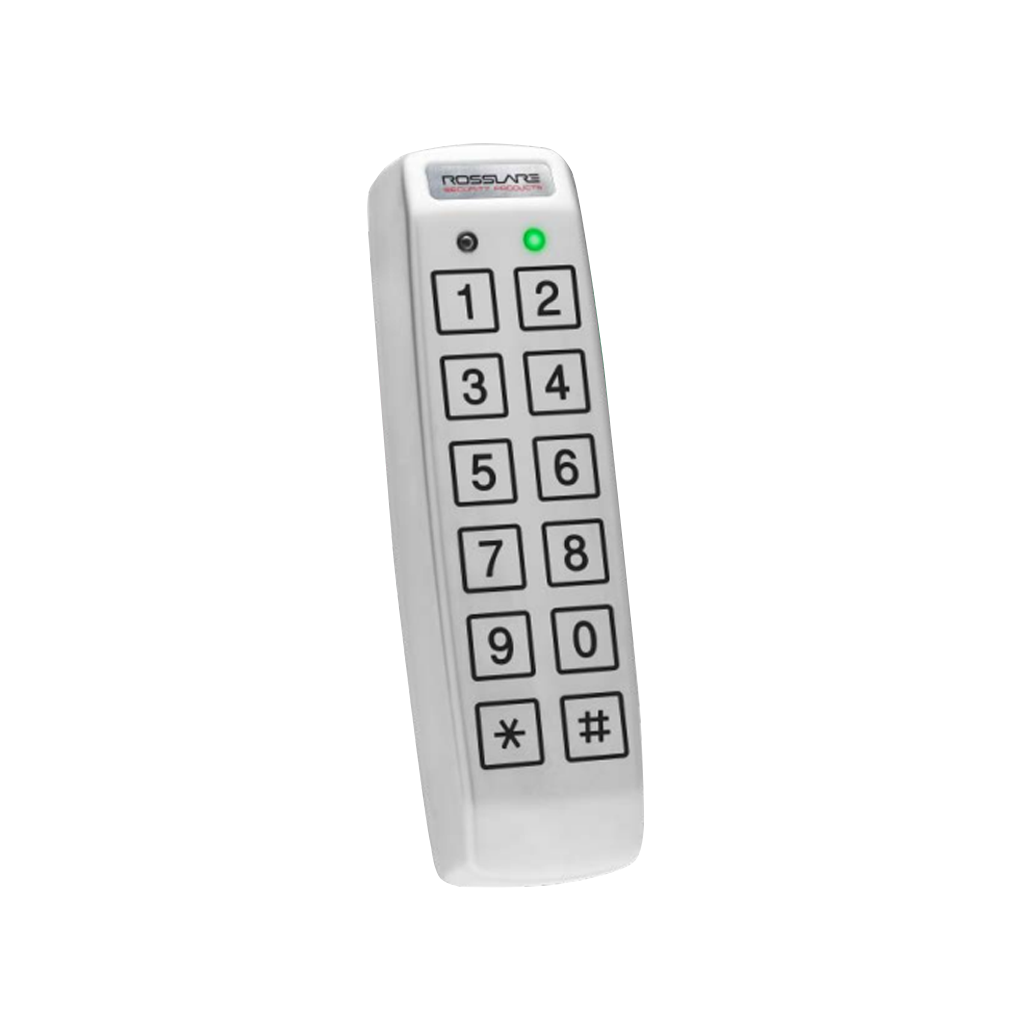

ROSSLARE AY-S55
Anti-Vandal Piezoelectric 2×6 PIN Reader
MAIN FEATURES
Supports 4-digit to 8-digit PIN credentials
Smooth, attractive design, with all-weather indoor and outdoor operation
Large metallic piezoelectric keypad with highly sensitive keys
2 tri-colored LEDs and an integral sounder for programming and operation
User-friendly menu system based on keypad, LED and sounder indicators
Back optical tamper detection output
Door bell feature (‘*’ key), when operated with Rosslare controllers
PROFESSIONAL GRADE FEATURES
8 Selectable PIN transmission modes
LED control
Programmable Facility code
Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorized opening
SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage Range | 5–16 VDC, from a regulated power supply |
| Standby Input Current | 30 mA |
| Maximum Input Current | 120 mA |
| LED Control Input | Dry Contact, N.O. |
| Tamper Output | Open collector, active low, max. sink current 32 mA |
| OPERATIONAL SPECIFICATIONS | |
| Keypad | 2×6 Keys for PIN codes entry and local programming Doorbell key (‘*’) function (with Rosslare controllers only) |
| Facility Code | Programmable |
| PIN Code Formats | 8 selectable formats, from single-digit to 8-digit PIN codes, including: – Wiegand 6-Bit and 8-Bit, nibble and parity bit options, optional Rosslare format – 1–5 keys, fixed 4 keys and 6 keys BCD with Facility code, Wiegand 26-Bit – 2×6 matrix single key – 1 to 8 keys BCD, Clock & Data |
| Audio/Visual | Two tri-color LED indicators, Built-in sounder |
| Design | Epoxy-potted, fully-sealed in a rugged metal slim enclosure, high strength construction, high-sensitive piezoelectric metal keys, no moving parts. Highly suitable for extremely harsh environments. |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Environment Range | Suitable for outdoor use (meets IP65) |
| Operating Temperature Range | -31ºC to 63ºC (-25ºF to 145º F) |
| Operating Humidity | 0% to 95% (non-condensing) |
| RFI Protection | > 10 V/m up to 1000 MHz |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (H x W x D) | 150 x 42 x 27 mm (5.9 x 1.7 x 1.1 in.) |
| Weight | 400 g (14.1 oz) |
| SYSTEM COMPONENTS | The AY-S55 is compatible with a variety of Rosslare’s access controllers, as well as with many third party access control systems. |
