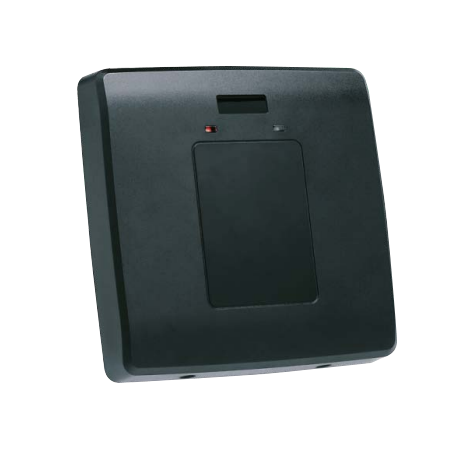

ROSSLARE AY- V12
Medium-Range Proximity Reader
MAIN FEATURES
Wiegand 26-Bit output format
RFID read range up to 22 cm (9 in.)
Operating voltage range of 5 to 16 VDC
46-cm (18”) pigtail cable
PROFESSIONAL GRADE FEATURES
RF Modulation: ASK at 125 kHz
Compatible with standard, passive EM type, cards and tags
Internal buzzer
LED control input
Optical wall tamper detection
Suitable for outdoor use (IP54)
Made of tough polycarbonate UV-resistant plastic
SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage Range | 5–16 VDC, from a regulated power supply |
| Standby Input Current | 120 mA @ 12 VDC |
| Maximum Input Current | 140 mA @ 12 VDC |
| PROXIMITY CARD READER | Maximum read range*: 22 cm (9 in.) Modulation: ASK at 125 kHz Compatible cards: All 26-Bit EM cards |
| Tamper Output | Open collector, active low, max. sink current 30 mA |
| LED Control Input | Dry Contact, N.O. |
| OPERATIONAL SPECIFICATIONS | |
| Output Format | Wiegand 26-Bit |
| Audio/Visual | Bi-colored LED indicator, built-in sounder |
| Design | Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Suitable for harsh environments |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Environment | Water resistant, suitable for outdoor use (IP54) |
| Operating Temperature Range | -32ºC to 63ºC (-25ºF to 145ºF) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| RFI Protection | > 20 V/m up to 1000 MHz |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (H x W x D) | 125 x 125 x 21mm (4.9 x 4.9 x 0.8 in.) |
| Weight | 285 g (10.1 oz) |
