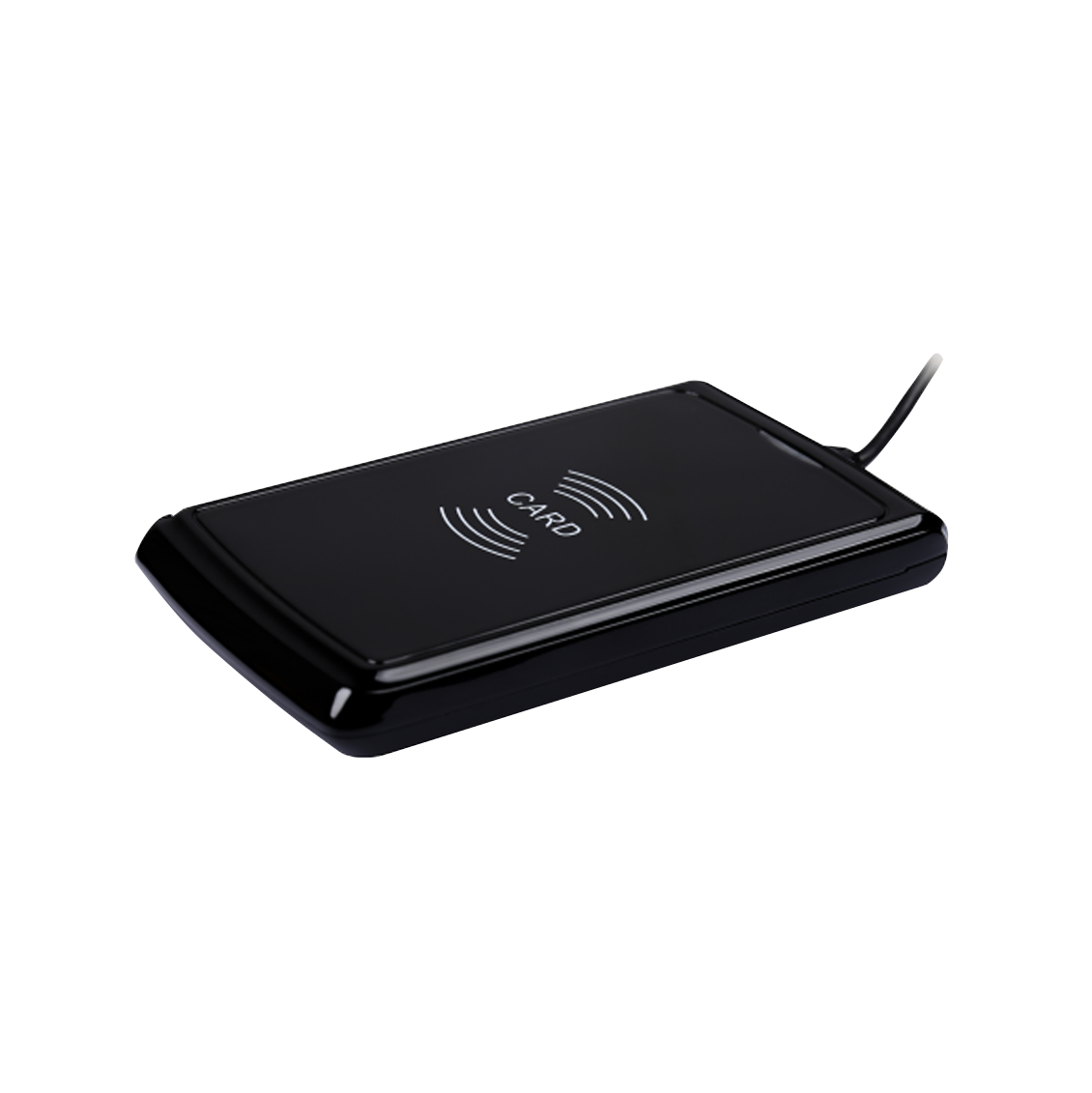

DESFire EV1 / MIFARE Classic
EV1 Desktop Programmer


Main Features

• Supports ISO/IEC18092 NFC peer-to-peer mode
• Support high-level command of MIFARE DESFire EV1 (DES/3DES, 3k3DES, AES) on hardware
• Supports high speed of ISO14443 up to 424 kbps
• Excellent and compact design



Electrical Characteristics
Power Supply (from USB)5 VDC (±5%)
Current Consumption<120 mA
Data Specifications
Communication Rate106 -424 kbps High speed transaction
Baud Rate9600 to 115200 bit/s (default 115200)
IndicationControllable two-color LED, one buzzer:
• Red LED for Power state
• Green LED for Normal Reading state
InterfaceUSB (USB supplies power)
Communication Cable1.5 meter long USB communication cable
Frequency13.56 MHz; APDU command
Environmental Characteristics
Operating Temp. Range0°C to 60°C (32°F to 140°F)
Storage Temp Range-10°C to 65°C (22°F to 149°F
Operating Humidity Range5 to 95% RH (non-condensing)
ContactlessISO14443A 4(part 1-4), MIFARE Classic EV1, MIFARE DESFire EV1, ISO14443B
Physical Characteristics
Weight79 g (2.8 oz)
Dimensions (L x W x H)116 x 67 x 14 mm
(4.6 x 2.6 x 0.6 in.)
